  • Diameter Range : DN700 - DN1200

  • Comply to BS EN 1171 : 2002 / BS EN 1074-2 : 2000

  • Maximum Working Pressure : 16 Bar

  • Features : Non-Rising Stem Gate Valve

  • Coating : Fusion Bonded Epoxy Paint (Minimum 250 Microns DFT)

DN H L D D1 n
700 1760 610 910 840 24
800 1958 660 1025 950 24
900 2130 711 1125 1050 28


NoDescriptionMaterial
1Body
Ductile Iron, BS EN 1563 Grade 500/7
2Resilient Wedge
Ductile Iron Fully Vulcanized with EPDM Rubber, BS 2494 Type W/MS 672:99
3Stem Nut
Gunmetal, BS 1400 LG2/AB1
4Cartridge
Gunmental, BS 1400 LG2/AB1
5Stem
Stainless Steel, BS 970 Part 1 Grade 431/S29
6Stem Cap
Ductile Iron, BS EN 1563 Grade 500/7
7Bonnet Gasket
EPDM, BS 2494 Type W/MS 672:99
8Bonnet
Ductile Iron, BS EN 1563 Grade 500/7

**No. referring to the thumbnail image above.

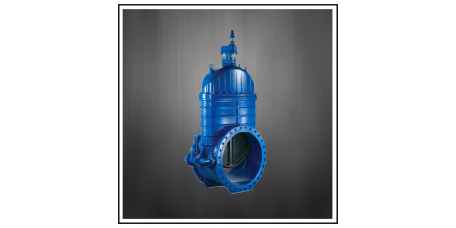

TEK Resilient Seated Gate Valve

  • Double Flange Ductile Iron Resilient Seat Gate Valve PN16
