Products

  • Diameter Range : DN50 - DN2200

  • Comply to BS EN 593 : 2009 + A1 : 2011

  • Maximum Working Pressure : 16 Bar

  • Operation Method : Lever Operated (DN50 - DN200)
                                    Worm Gear Operated (DN50 - DN2200)

  • Coating : Fusion Bonded Epoxy Paint (Avr. 250 microns DFT Above)

  • Applied Pressure : Shell Test - 24 Bar
                                    Seat Test - 17.6 Bar


DN H L D D1 n
50 275 108 165 125 4
80 295 114 200 160 8
100 300 127 220 180 8
150 415 140 285 240 8
200 485 152 340 295 12
250 525 165 405 355 12
300 550 178 460 410 12
350 580 190 520 470 16
400 610 216 580 525 16
450 670 222 640 585 20
500 715 229 715 650 20
600 775 267 840 770 24
700 875 292 910 840 24
800 945 318 1025 950 24
900 1040 330 1125 1050 28
1000 1155 410 1255 1170 28
1200 1235 470 1485 1390 32
1400 1337 530 1685 1590 36
1600 1460 600 1930 1820 40
1800 1560 670 2130 2020 44
2000 1667 760 2345 2230 48
2200 1825 850 2550 2440 52


No Description Material Material Specification
1 Valve Body
Ductile Iron
BS EN 1563 Grade 500/7
2 Retaining Ring
Stainless Steel
BS 970 Part 1
3 Disc
Ductile Iron
BS EN 1563 Grade 500/7
4 Seal Ring
EPDM
BS 2494
5 Driving Shaft
Stainless Steel
BS 970 Part 1 Grade 431/S29
6 Gear Box
Ductile Iron
BS EN 1563 Grade 500/7
7 Bush Cap
AL Bronze
BS 1400
8 Bearing Bush
AL Bronze
BS 1400

**No. referring to the thumbnail image above.

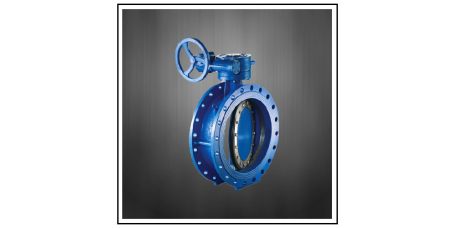

TEK Double Flange Butterfly Valve

  • Double Flange Ductile Iron Butterfly Valve PN16
